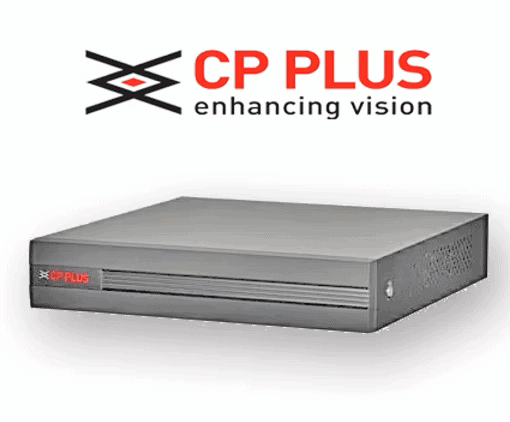

Key Features
High-Resolution Recording
Supports up to 8 MP live view, recording, and playback.
Delivers clear and detailed video monitoring.
Efficient Video Compression
Supports H.265+ and H.264+ compression technologies.
Reduces storage usage while maintaining video quality.
Video Output
HDMI and VGA outputs for simultaneous display.
Supports multiple display resolutions.
Network Camera Compatibility
Compatible with multiple network camera brands.
Supports ONVIF Version 2.4 for easy integration.
Storage Support
Supports 1 SATA hard drive up to 6 TB.
Includes 2 USB 2.0 ports for backup and data transfer.
Playback & Recording
Manual and scheduled recording modes.
Smart playback with fast forward, rewind, digital zoom, and event search.
Motion Detection
Supports intelligent motion detection zones.
Video loss and camera status monitoring available.
Remote Access
Compatible with iPhone, iPad, and Android devices.
Remote monitoring through network connectivity.
User Management
Supports up to 128 user accounts.
Secure multi-user access and permissions.
Reliable Performance
Low power consumption with stable operation.
Compact design suitable for professional surveillance installations
Technical Specifications
• Channels: 4 Channel IP NVR
• Processor: Dual-Core Embedded Processor
• Operating System: Embedded Linux
• Maximum Resolution: Up to 8 MP
• Video Compression: H.265+ / H.264+
• Video Output: 1 HDMI + 1 VGA
• Storage: 1 SATA HDD (Up to 6 TB)
• USB Ports: 2 × USB 2.0
• Network Port: 1 × RJ-45 (10/100 Mbps)
• Mobile Support: iPhone, iPad & Android
• Maximum Users: 128
• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, DHCP, DNS, ONVIF
• Power Supply: DC 12V / 1.5A
• Power Consumption: Less than 2.57 W (Without HDD)
• Operating Temperature: -10°C to +45°C
• Dimensions: 197 × 196.6 × 41.5 mm
• Weight: Approx. 1.15 kg (Without HDD)
