Key Features
- 4 MP High-Resolution — 1/2.7″ CMOS sensor delivering up to 2688×1520 resolution at 25/30 fps.
- Dual-Light Night Vision — Up to 50 m IR and 30 m warm-light for vibrant visibility at night.
- Smart Illumination & Starlight Sensor — Sharp and balanced footage even in ultra-low light.
- Advanced Image Enhancements — 120 dB WDR, Day/Night ICR, 3D DNR, ROI, AWB, AGC, BLC, HLC, and digital watermarking.
- Quad-Stream & Efficient Compression — Supports InstaStream, H.265, H.264/H.264H/B, MJPEG.
- Built-in Audio — Integrated microphone for audio-enabled surveillance.
- Rugged, Secure Build — IK10 vandal-proof body and IP67 weatherproof rating.
- Secure Connectivity & Storage — PoE support, micro-SD slot (up to 512 GB), and multi-layered cybersecurity.

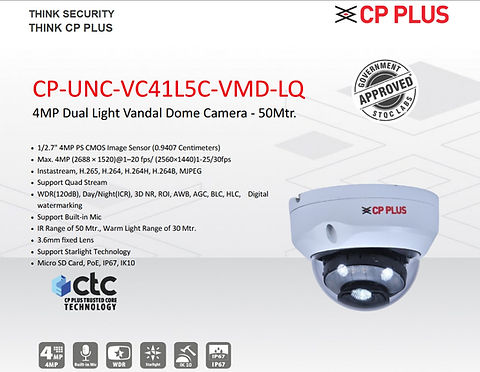

Technical Specifications
| Feature | Details |
|---|---|
| Image Sensor | 1/2.7″ 4 MP CMOS |
| Resolution | Up to 2688×1520 |
| Minimum Illumination | 0.001 lux (color), 0.0001 lux (B/W); 0 lux with IR |
| Lens | Fixed 3.6 mm (2.8 mm optional) |
| Angle of View | H: 83°, V: 43°, D: 100° |
| DORI Distance | Detect: 85.4 m; Observe: 34.2 m; Recognize: 17.1 m; Identify: 8.5 m |
| Illumination | IR 50 m + Warm Light 30 m |
| Video Compression | InstaStream, H.265, H.264 variants, MJPEG |
| Analytics | Tripwire, Intrusion Detection, SMD |
| Storage Options | micro-SD (up to 512 GB) |
| Power | PoE (802.3af) / 12 V DC |
| Protection Rating | IP67, IK10 |
| Power Consumption | Basic 2.4 W (DC), Max 6.6 W (DC) |
| Dimensions & Weight | 81 × 109.9 mm; 350 g |
| Operating Temp | –40 °C to +60 °C |
Summary

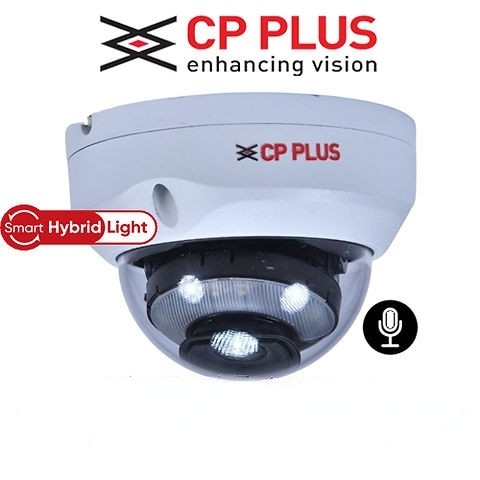

The CP-UNC-VC41L5C-VMD-LQ offers superior clarity with 4 MP resolution and dual-light night capability, smart image processing, built-in audio, and rugged performance in all weather conditions. Its vandal-resistant and weatherproof design makes it ideal for corporate, retail, and public surveillance applications.
