Key Features
- Imaging & Sensor
- Features a high-quality 1/2.8″ 2 MP PS CMOS sensor that captures clear Full HD (1920 × 1080) video at up to 30 fps for reliable surveillance.
- Dual Illumination (IR + Warm Light)
- Combines infrared and warm LED illumination to deliver bright, detailed night-time monitoring with an effective range of up to 30 meters.
- Audio Capability
- Includes a built-in microphone for synchronized audio and video recording, providing enhanced security monitoring.
- Advanced Video Compression
- Supports InstaStream, H.265, H.264, and MJPEG compression technologies with triple-stream functionality for efficient bandwidth and storage management.
- Image Enhancement Technologies
- Incorporates DWDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC, HLC, and digital watermarking to improve image quality in different lighting conditions.
- Flexible Mounting Angles
- Offers 360° pan, 90° tilt, and 360° rotation, allowing convenient installation and precise camera positioning.
- Excellent Clarity with DORI Metrics
- 3.6 mm Lens: Detects up to 58.9 m, observes up to 23.6 m, recognizes up to 11.8 m, and identifies up to 5.9 m.
- 2.8 mm Lens (Optional): Detects up to 44.1 m, observes up to 17.7 m, recognizes up to 8.8 m, and identifies up to 4.4 m.
Technical Highlights
| Feature | Specifications |
|---|---|
| Min. Illumination | 0.005 lux (Color), 0.005 lux (B/W), 0 lux (IR on) |
| White Balance Modes | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Shutter Speed | Auto/Manual control from 1/3 s to 1/100,000 s |
| Noise Ratio | >56 dB (S/N Ratio) |
| Angle of View (3.6 mm) | H: 87°, V: 44°, D: 105° |
| Privacy & OSD | Privacy Mask (4 areas), Camera Title, Date & Time overlay |
| Smart Search | Compatible with CP PLUS Smart NVR for intelligent video event extraction |
| Security Protocols | ONVIF S/G/T, IPv4/IPv6, HTTPS, TLS 1.2, SNMPv3, IP/MAC filtering, AES-256 encryption, and more |
| Alarm & Detection | Features include Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Audio Detection, SMD (Human & Motor Vehicle), Security Exception |
| Power Consumption | Basic: 1.4 W (12 V DC), 2.2 W (PoE); Max: 3.3 W (12 V DC), 4.4 W (PoE) with all features active and warm light on |
| Environmental Ratings | IP67; Operating –40 °C to +60 °C; Humidity ≤95% (non-condensing) |
| Build & Dimensions | Metal + Plastic casing, Size: 162.6 × 70 × 70 mm; Weight: ~220 g |
| Certifications | ISO 9001:2015, ISO 20000-1:2018, CE, FCC, RoHS, BIS, STQC |
Summary

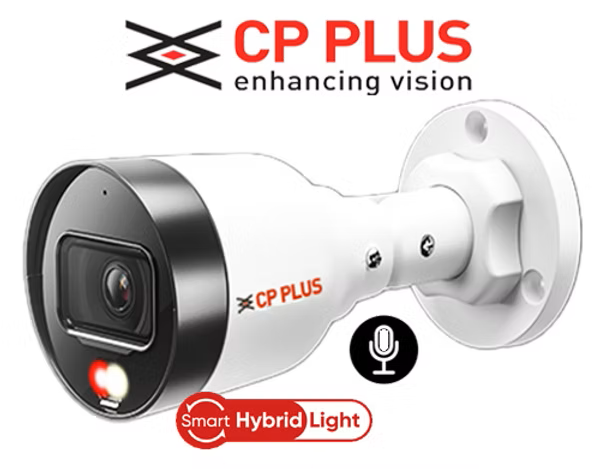

The CP-UNC-TA21L3C-LQ is a robust and intelligent surveillance camera, excelling in full-color imaging even in complete darkness, thanks to its dual-light system. With powerful cybersecurity, advanced video compression, and flexible installation features, this bullet camera is well-suited for outdoor applications such as commercial buildings, retail premises, and residential complexes. Its reliable weatherproof design and smart functionality make it a durable choice for demanding environments.
