Key Features & Highlights
- Resolution & Sensor: 1/2.8″ 2 MP PS CMOS sensor delivering 1920 × 1080 @25/30 fps full HD video.
- Dual Light Technology: Combines IR and warm light LEDs to produce clear night footage and vibrant color images even in low-light conditions—up to 30 m.
- Video Compression & streaming: Supports InstaStream, H.265, H.264 (incl. variants), and MJPEG; triple-stream for efficient storage and bandwidth-friendly video delivery.
- Imaging Enhancements: Includes DWDR, Day/Night with ICR, 3D Noise Reduction, ROI, AWB, AGC, BLC, HLC, and digital watermarking for optimal image clarity.
- Lens & Field of View: Comes with a 3.6 mm fixed lens (F1.6), optional 2.8 mm available. Offers wide-angle coverage with DORI detection ranges up to ~59 m.
- Robust Build: Rated IP67 for weather resistance; operates in temperatures from –40 °C to +60 °C.
- Power & Connectivity: Supports both 12 V DC and PoE (802.3af); compact and lightweight (~250 g).
- Security & Smart Alerts: Cybersecurity with AES-256 encryption, HTTPS, ONVIF, IP/MAC Filtering; smart features like motion, audio detection, human/motor vehicle detection, and search on compatible NVR.
Detailed Specifications
| Feature | Description |
|---|---|
| Minimum Illumination | Color: 0.005 lux @ F1.6; B/W: 0.0005 lux; 0 lux with IR on |
| DORI Range (3.6 mm lens) | Detect: ~58.9 m; Observe: ~23.6 m; Recognize: ~11.8 m; Identify: ~5.9 m |
| Angle Adjustment | Pan: 0–360°; Tilt: 0–78°; Rotation: 0–360° |
| Video Resolution Options | 2M, 1.3M, 720p, D1, VGA, CIF formats supported |
| Power Consumption | Basic: 1.4 W (DC), 2.2 W (PoE); Max: 3.3 W (DC), 4.4 W (PoE) |
| Dimensions & Weight | Approx. 85.5 × 109 mm; weight: ~250 g |
Summar

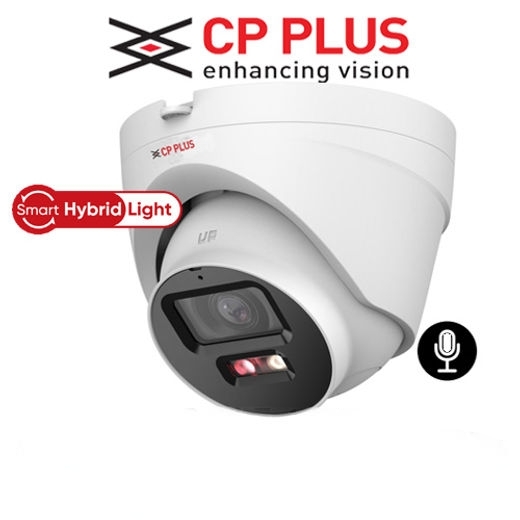

The CP-UNC-DA21L3C-LQ is a premium 2 MP dual-light dome camera offering advanced low-light performance, smart video features, and rugged reliability. Perfect for both residential and commercial surveillance scenarios requiring crisp day/night color imaging and efficient, future-ready technology.
